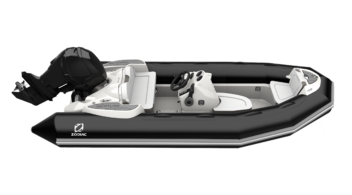

YACHTLINE 490
YACHTLINE 490
The big brother of the Yachtline range... It has superior equipment and has the great advantage of being able to tow skiers and wakeboarders. Designed for large groups of friends or families, it can accommodate up to 9 passengers.
- 16'1" Length
- 6'9" Beam
- 860 lbs Weight
- 90 HP Max Power
- 23 gal Fuel Tank
- 9 Persons Max
Features
Engine
Outboard, 1 engine
Deck
Open Deck, 2 seats around the console, Double bench seat, 2 seats in the front
Sailing Program
Materials
Polyester/Fiberglass hull, Neoprene/Hypalon tube
People Capacity
9 Persons /
6 people boats and above
Size
16'1"" /
13 ft boats and above
Standard equipment
- Removable Tube
- 1 Battery switch
- 1 GRP Bow Roller w/ Navigation Lights
- 12V Plug
- 2 Paddles
- 3 Breakers
- Automatic bilge pump
- Battery box
- Boarding Ladder
- Double Pilot/Co-pilot Seat
- Easy Push valves
- Extinguisher Recess
- Glove Box
- Interior Fabric Handles
- Manual Pump
- Mechanical Steering System
- Passenger Seats w/ Removable Upholstered Cushion
- Repair Kit
- Console with Wheel
- V-shaped Fiberglass Hull w/ Built-in Flaps
- Non-Skid Moulded Deck
- Mooring Compartment
- Aft Locker
- Large Rubbing Strake
- Lateral Locker
- 1 Bow D Ring
- 2 Aft Tie-down Points
- 1 Self-Bailer
- 1 Bow Cleat
- 2 Inox Aft Cleats
- EVA kit on bow roller and wings
- 3 Lifting Points
- EVA Deck Grey/Black
- Rear Backrest (x2)
- Console Stainless Steel Handrail YL490
- Eva Deck grey
- Led light 12V
- ABYC Fuel Tank 24 Gal (YL 490)
Options & accessories
- Ski Mast
- YL 490 - 4 Speaker Stereo
- YL 490 - Boat Cover
- Pre-rig YAM YL 440/490 LAT/MEC
- YAMAHA 70 HP
- YAMAHA propeller 13 1/4" x 17 - 70 HP
- Pre-rig MER YL 440 LAT/MEC
- YAMAHA 90 HP
- YAMAHA propeller 12 5/8" x 21 - 90 HP
- MERCURY 75 HP
- MERCURY propeller 13" x 17 - 75 HP
- MERCURY 90 HP
- MERCURY propeller 12.5" x 19 - 90 HP
